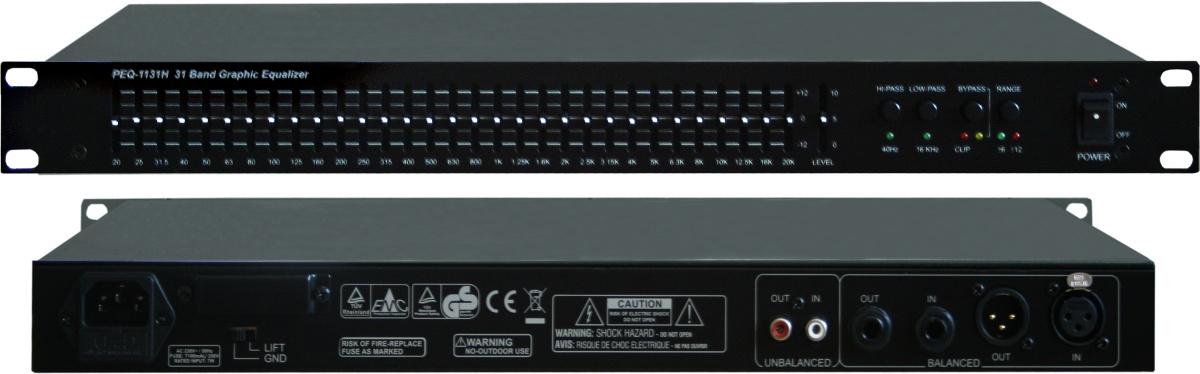

1 x 31 band graphic equalizer. Constant Q-circuity with a 3% center frequency accuracy. Selectable boot/cut range of -+ 6 dB or -+ 12 dB. Active balanced und unbalanced input and output connections. 20mm with positive center detente. Variable input level control. Clip level indicator. Ground lift switch. Power off automatic bypass function. Button filters (highpass 40Hz, lowpass 16kHz). Technical specifications: max. output level: -+16 dBV, THD: 0,02 %, freq. response: 20 Hz - 50 kHz, S/N ratio: -93dB, dimensions: 480x44x220 mm, weight: 2,9 kg.
